HD-15 to NTSC Composite Video / S-Video Adapter
Coming soon
AUD129.00
An HD-15 (RGBS) to NTSC Composite Video and S-Video adapter designed specifically for the Home Arcade System*. Based on the famous Sony CXA2075M.
Comes with a 3D printed enclosure (0.1mm layer height for the best quality).
SPECIFICATIONS:- Superior S-Video quality.
- Compatible with the NTSC TV sets. PAL TVs may show black and white only (unless they support NTSC color decoding).
- Due to inherent design limitations of external RGBS to Composite Video adapters in general (asynchronous color subcarrier generation), Composite Video quality will vary depending on the PCB game.
- For low resolution ~240p/480i video only.
- It does not upscale.
*The adapter can be used in other applications:
- It requires a CSync signal on pin #13 of the HD-15 connector - not separate HSync and VSync signals.
- It expects +5V on pin #9 of the HD-15 input to power the adapter.
- For external powering: Use the USB-C port on the side of the adapter. This requires opening jumper JP1 and closing jumper JP2 on the bottom of the PCB (requires soldering). External power must be a clean, stable +5V supply. A low-quality power source with high ripple can introduce noise that will be visible in the displayed picture.

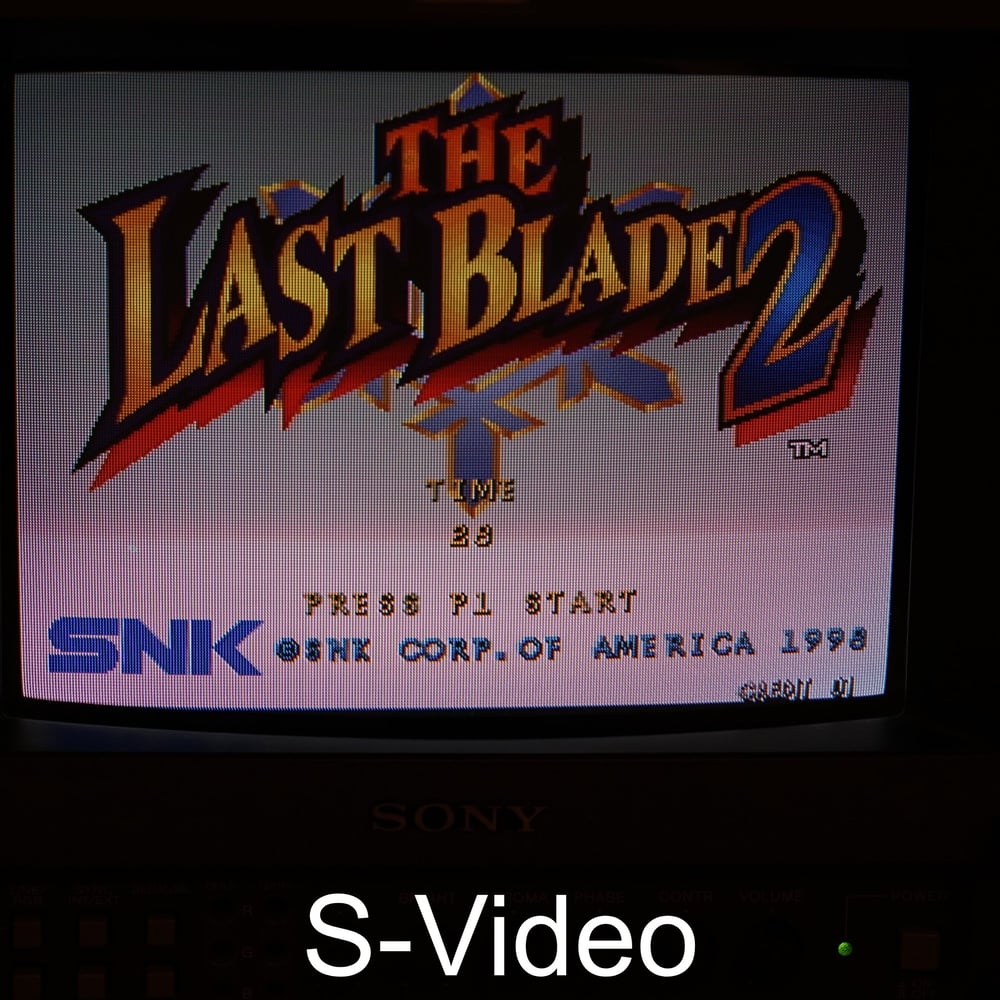

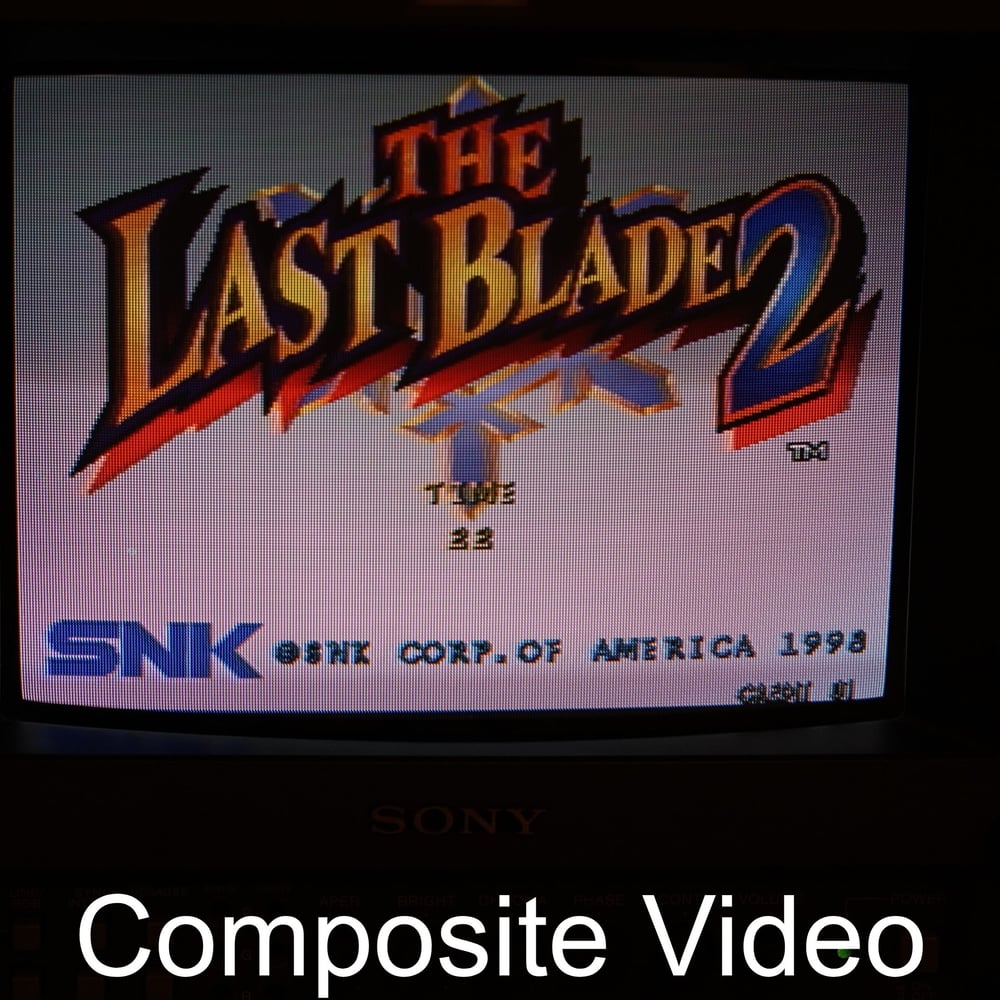

NOTE: The HAS, the PCB game, cables, and accessories visible in the photo present a setup example and are not included and shown for illustrative purposes only.
