HAS RECO v5.1

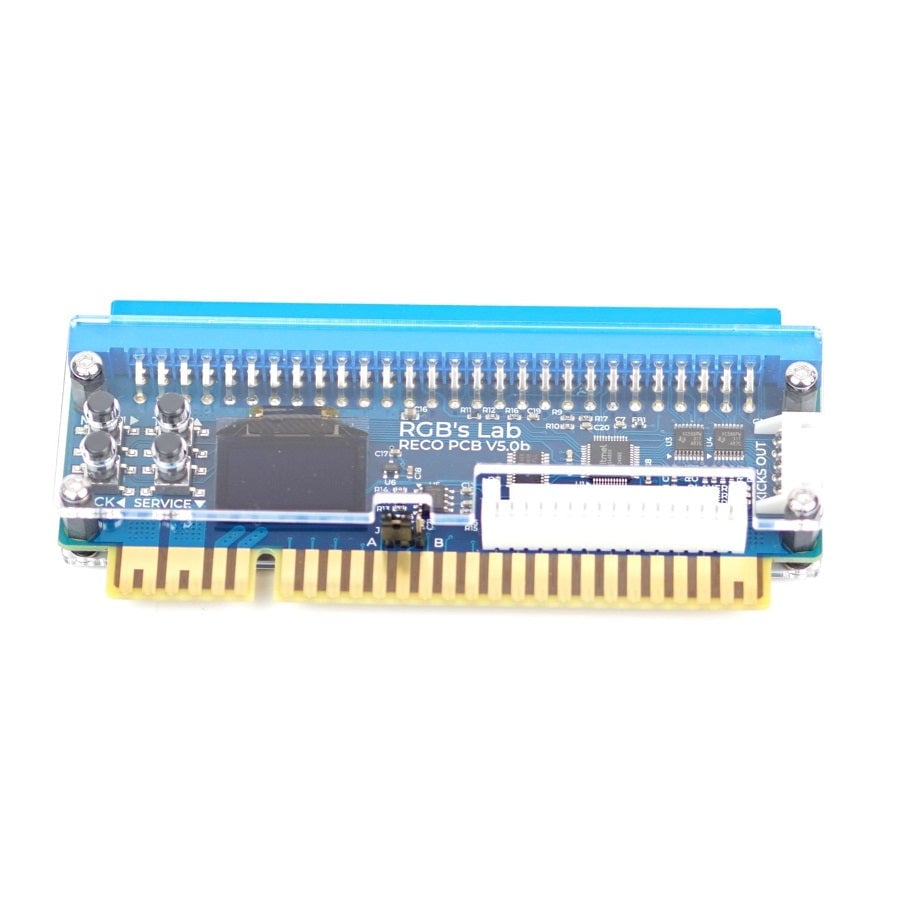

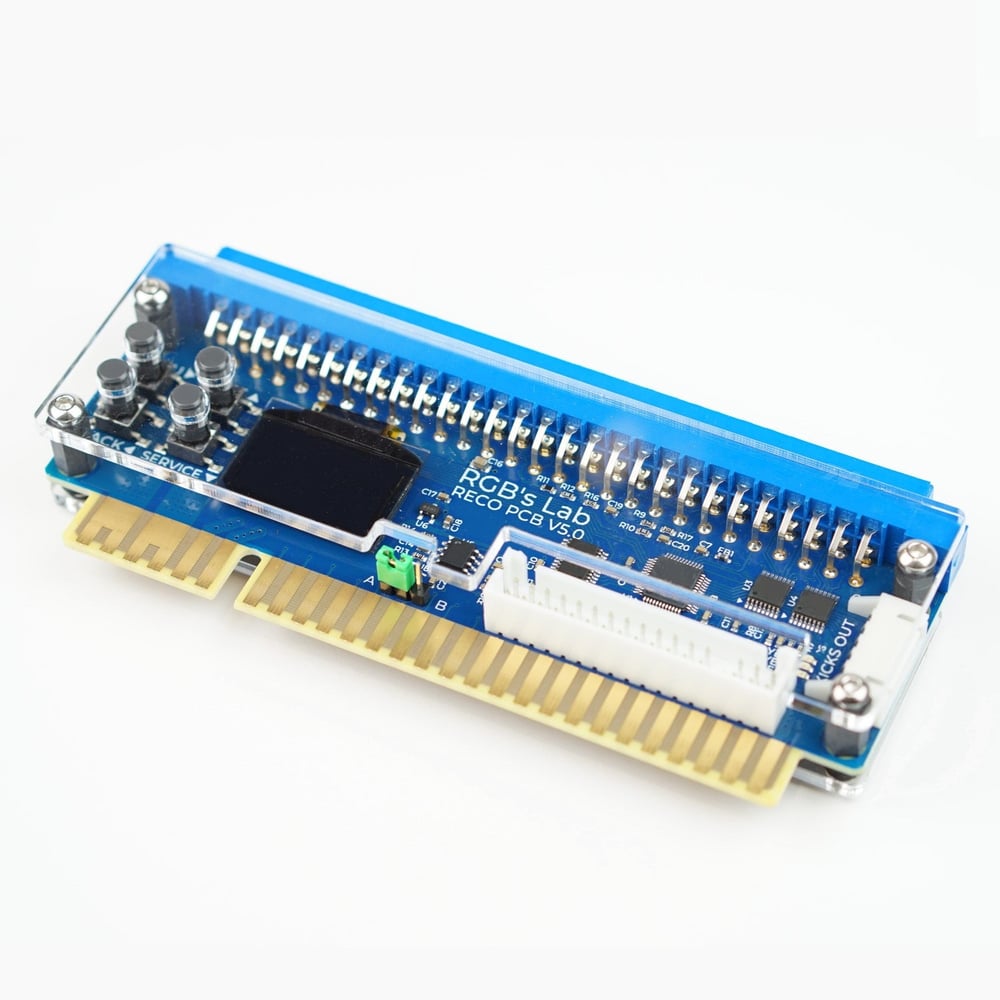

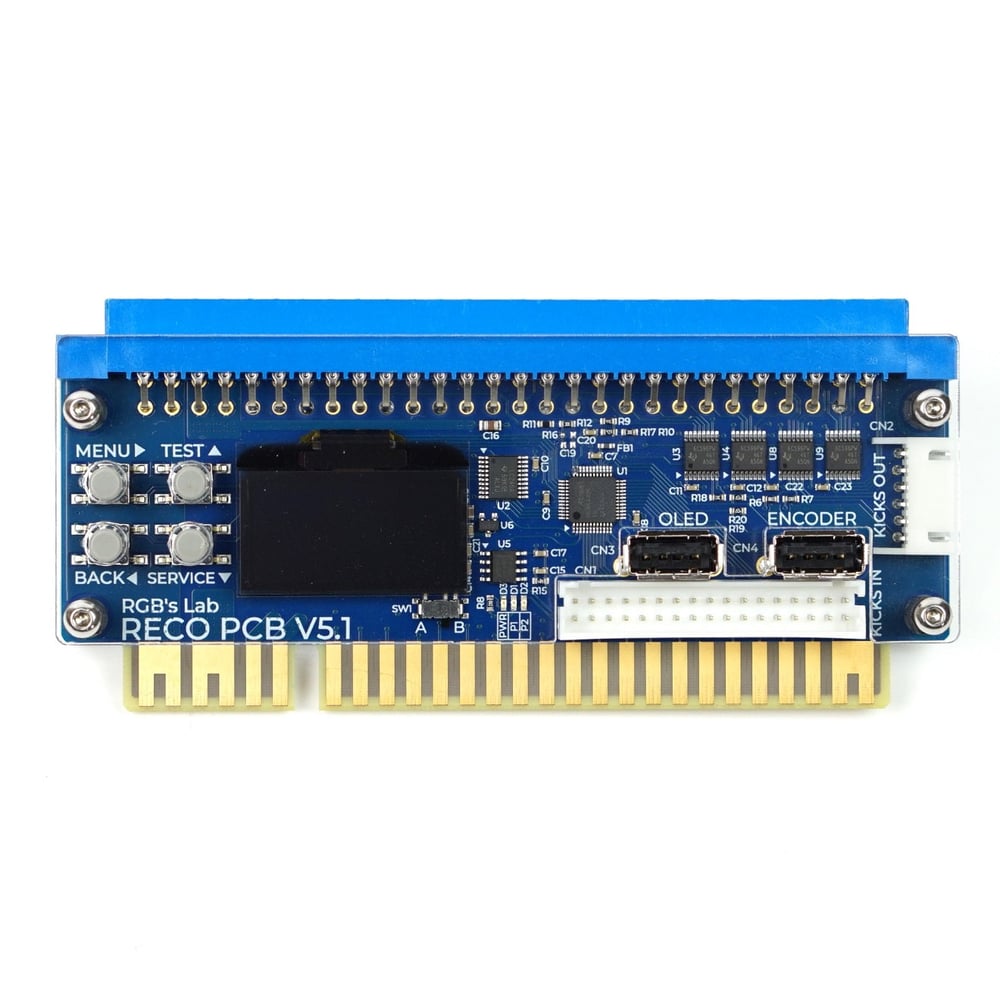

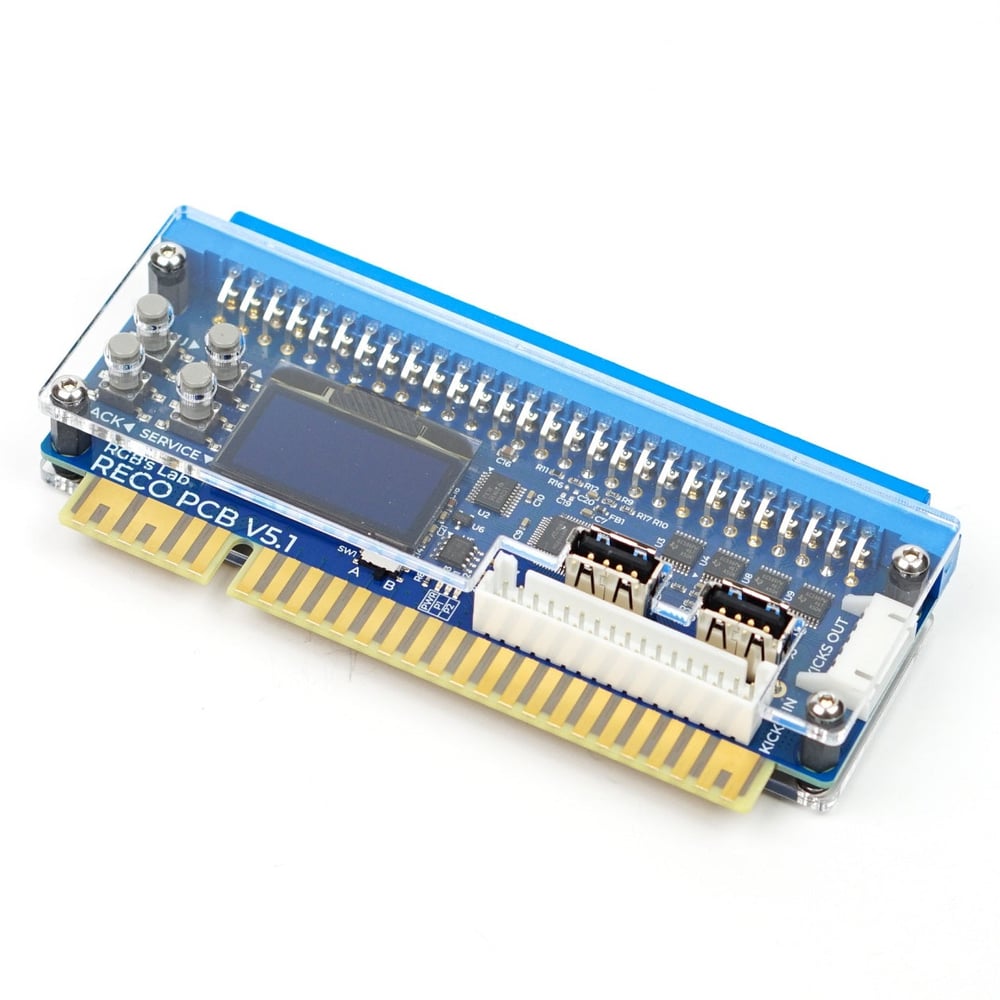

The RECO is a PCB that connects in between your arcade cabinet/supergun and the JAMMA PCB game, offering features such as on-the-fly button layout remapping, rapid-fire, 5 profiles to store your settings, and more. As of version 5.0, the RECO is equipped with an OLED screen and an extensive Menu System, which offers a wide array of new possibilities.

RECO v5.1 FEATURES:

Hard-gold plated JAMMA edge.

JAMMA, JAMMA+ compatible.

OLED screen.

Extensive Menu System.

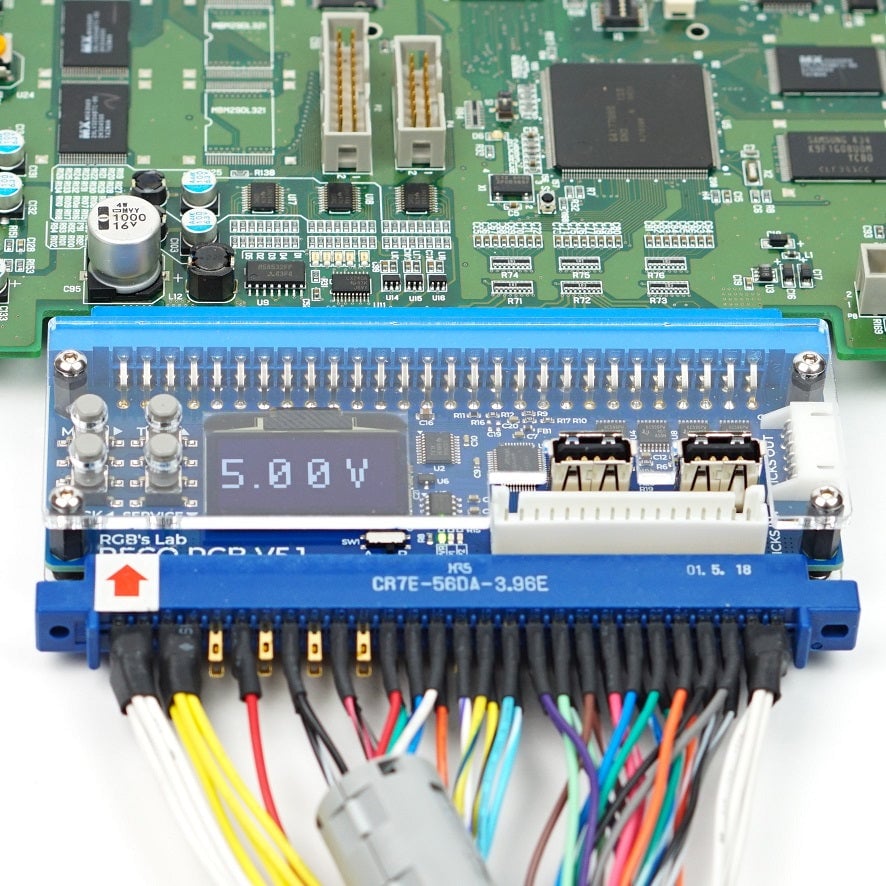

Precise Voltmeter to monitor the +5 V power rail (1% tolerance).

Test and Service buttons.

Button Test mode to check the device I/O and layout mapping.

Programmable Button Layout.

Programmable Rapid-Fire (VSync synchronized or asynchronous, 6 different fire rates).

Two user-defined 1-35 Hz custom Rapid-Fire rates with up to 0.1 Hz precision *

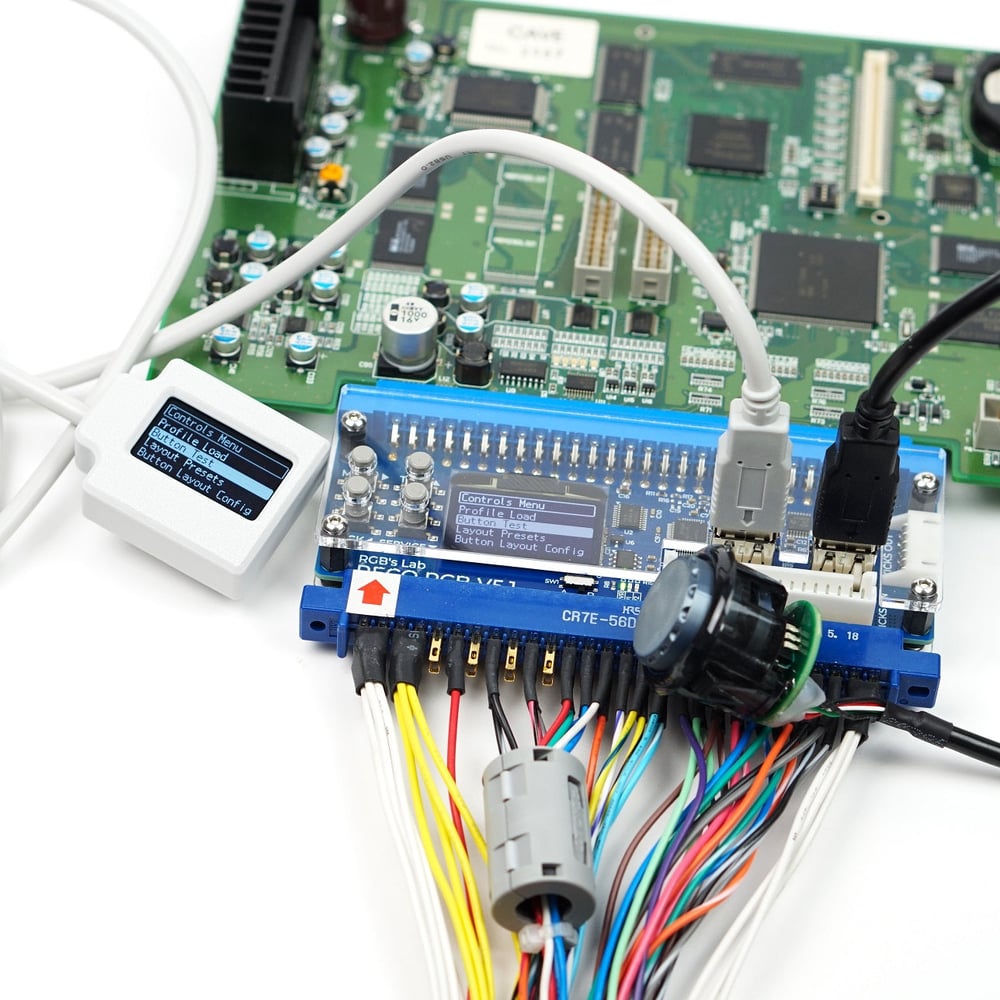

External OLED display accessory compatible *

5 profiles per player to save the Button Layout and Rapid-Fire Configuration.

3 Device Profiles to store your settings.

5 Gameplay Modes that significantly change the controls behavior (Default, Tournament, Shmups Arrange, Taps, NeoGeo CP).

5 popular Layout Presets.

Ability to combine/merge Button Layouts.

Selected buttons can work as ON-OFF switches. Can be applied even to Rapid-Fire enabled buttons.

Special functions can be assigned to buttons, for example, you can make the buttons work as Coin, Test, a combination of A+B+C, and more.

Programmable Rapid-Fire on joystick directions.

4-WAY joystick restrictor gate emulation.

Joystick rotation (90 degrees left/right, 180 degrees).

You can assign a special function to Player 1 and Player 2 Start buttons when pressed at the same time.

The Start button can be used to coin up, either simultaneously or with a delay.

Automatic PICKnMIX trigger.

Coin Chute Emulator for buttons assigned to work as Coin.

Buttons 1-6 on the JAMMA connector (buttons 4 and 6 can be disabled), making it a "CHAMMA" compatible output.

Buttons 4-6 on the JST-XH 6 pin “kick harness” connector. Panel.

Selectable buffered CSync.

Comes with a plexiglass case.

PACKAGE INCLUDES:

a RECO unit

a complete plexiglass case

Please make sure you read and follow the User Guide.

NOTE: Items marked with * are optional accessories/features and not included.

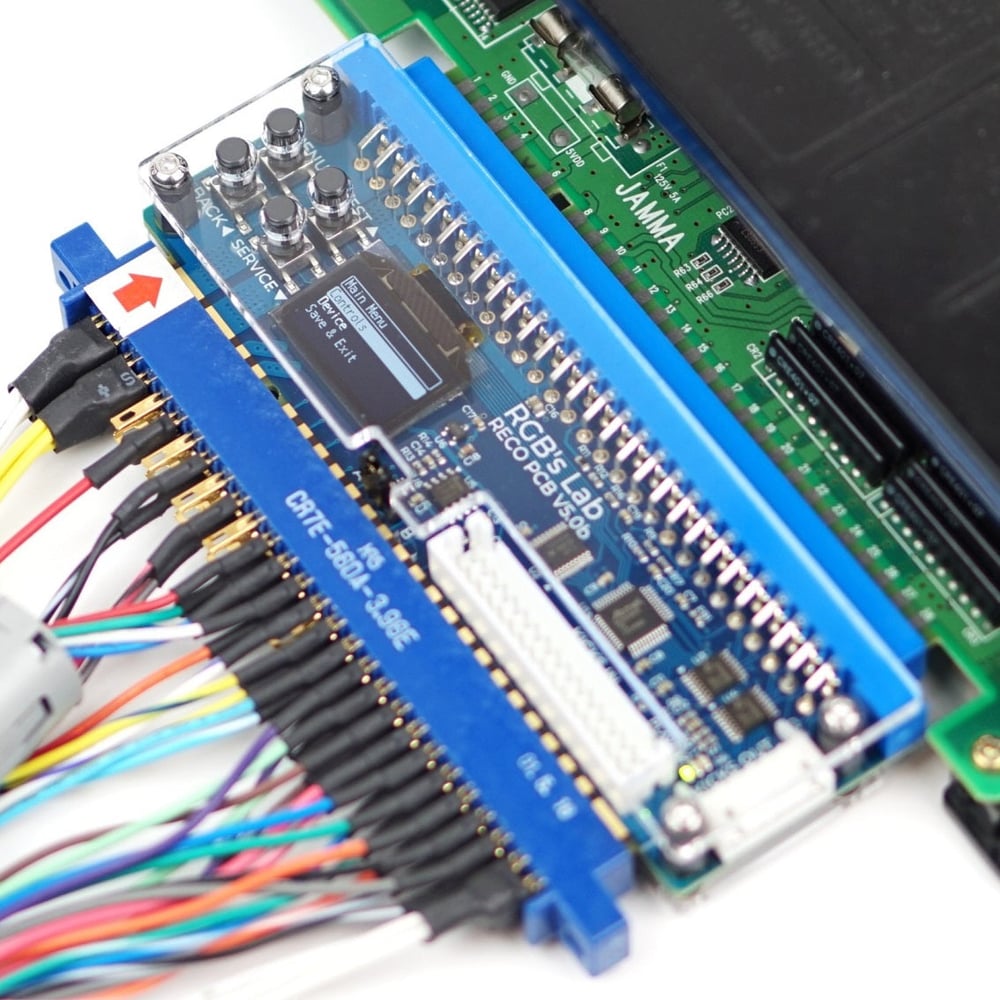

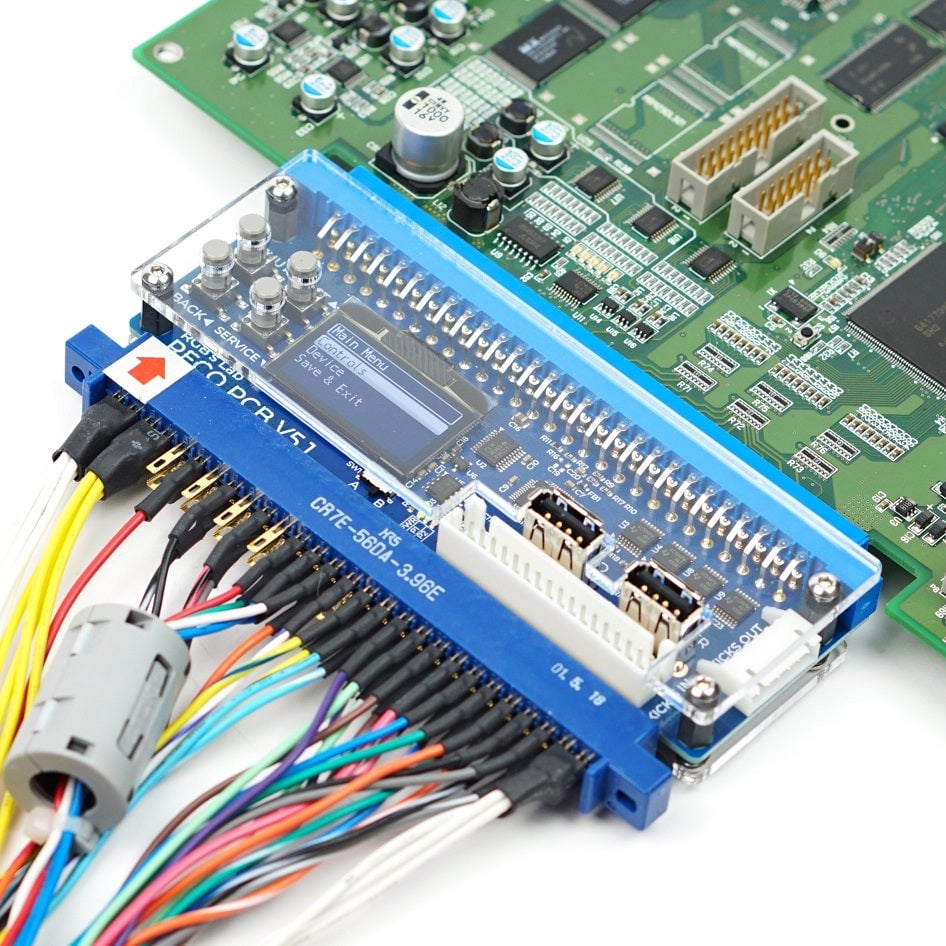

NOTE: The JAMMA harness and the PCB game visible in the photos present a setup example and are not included and shown for illustrative purposes only. The photos also show optional RECO accessories. Purchasing the RECO unit does not include the accessories pictured, they are available for purchase seperately in the store.

WARNING: The OLED and Rotary Encoder are not USB; these use the USB connector for convenience only. You cannot plug in USB devices to the RECO PCB or the OLED/Encoder to your computer - it will result in the RECO PCB, computer or USB device damage.
