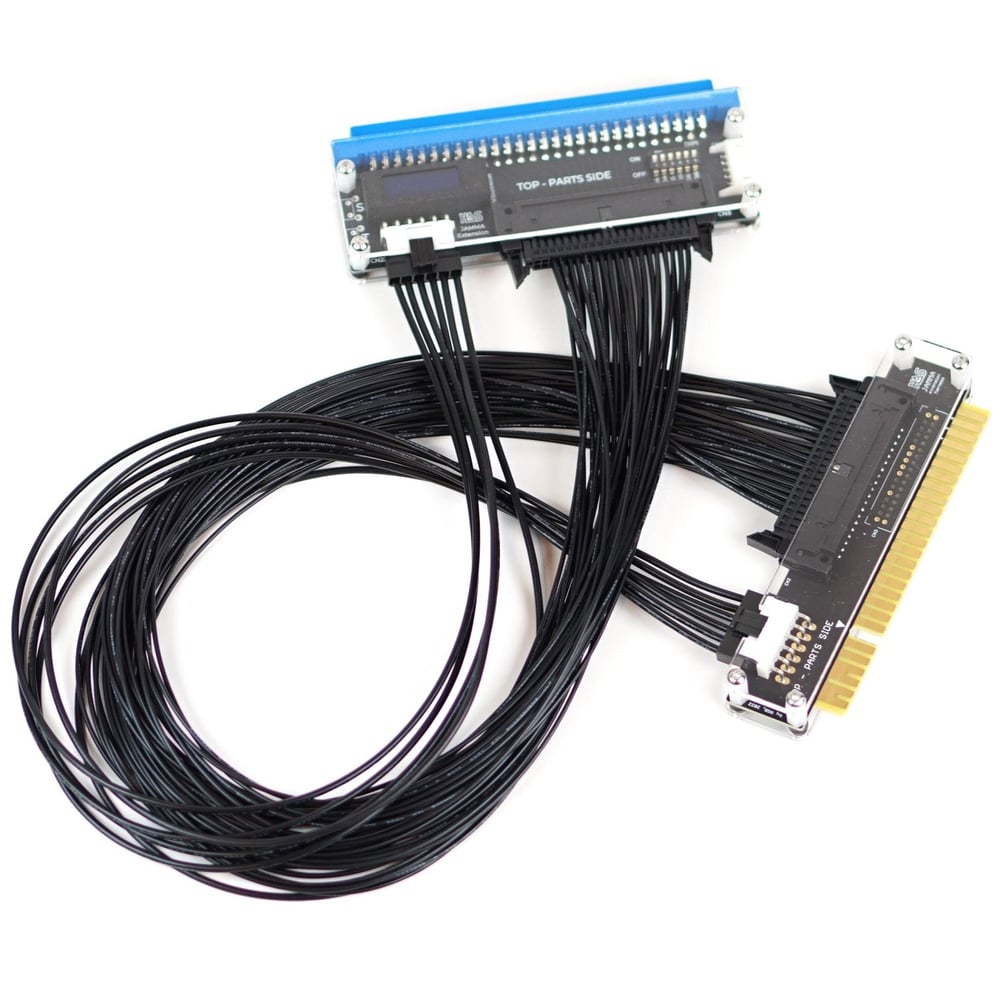

HAS JAMMA Extension Cable

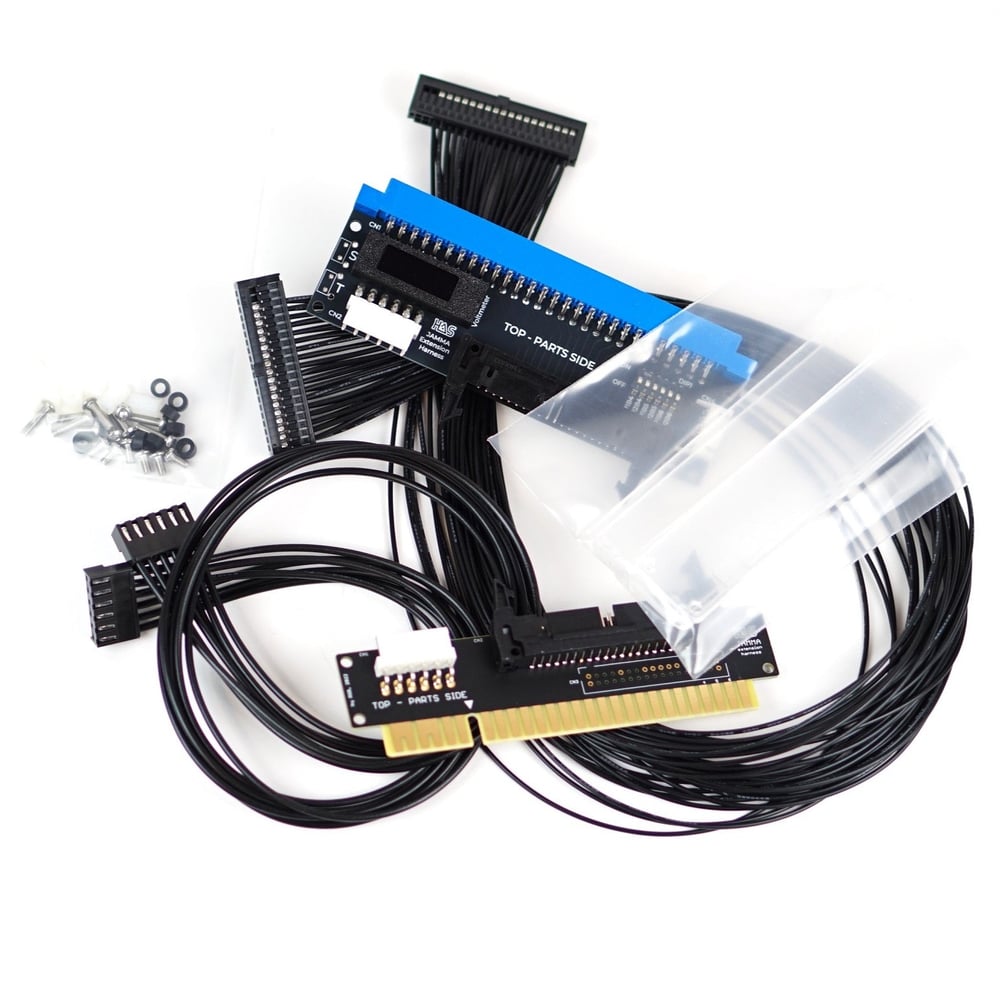

High quality JAMMA Extension Cable designed and manufactured by HAS with case for both ends of the harness (3 mm thick plexiglass cover for top and bottom, spacers and bolts; the case comes unassembled).
TEST and SERVICE buttons (OMRON brand) installed.
Hard gold plated JAMMA edge contacts (not soft gold "ENIG")

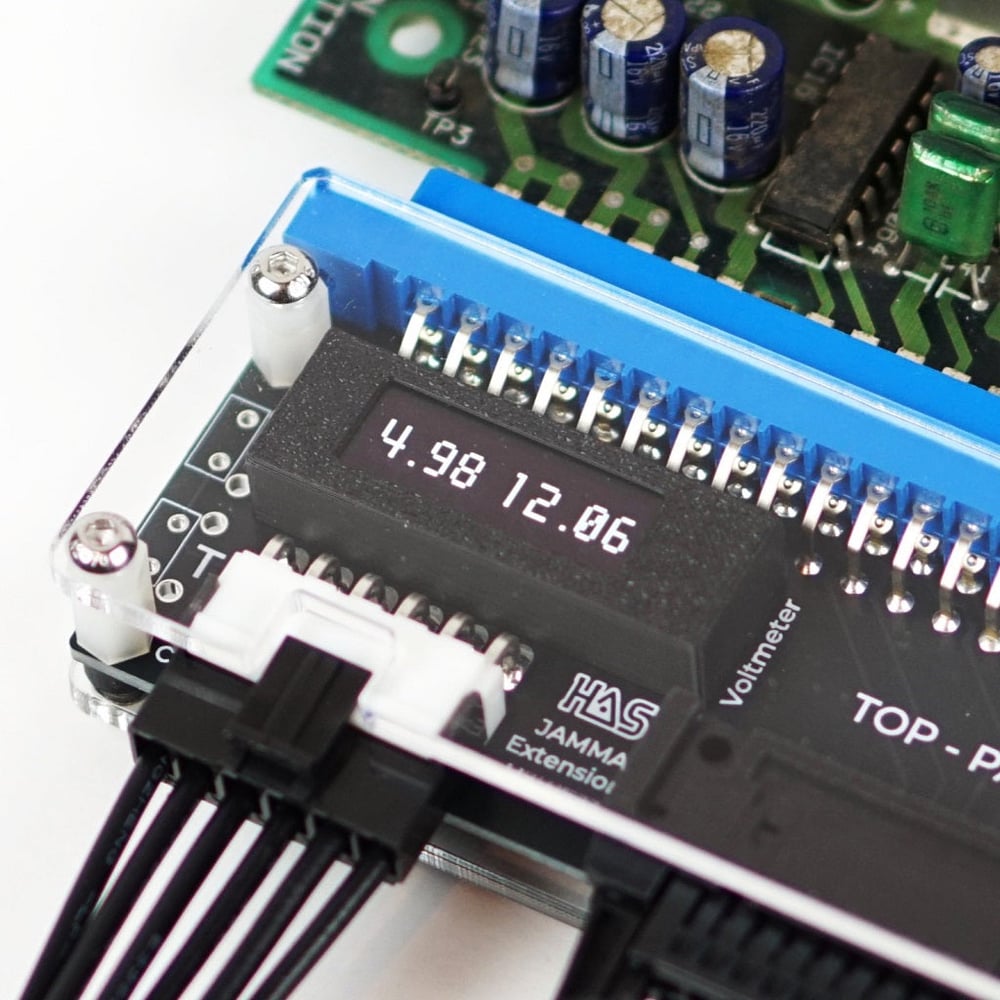

Built-in dual voltmeter to monitor +5V and +12V; 0.91" white OLED display; +/- 1% tolerance
~68 cm total length (~60 cm cables length)
2x16AWG for GND, 2x16 AWG for +5V, 1x18 AWG for -5V, 1x18 AWG for +12V, 22 AWG for everything else
DIP switch to enable/disable buttons 4, 5, and 6 outputs on the JAMMA connector

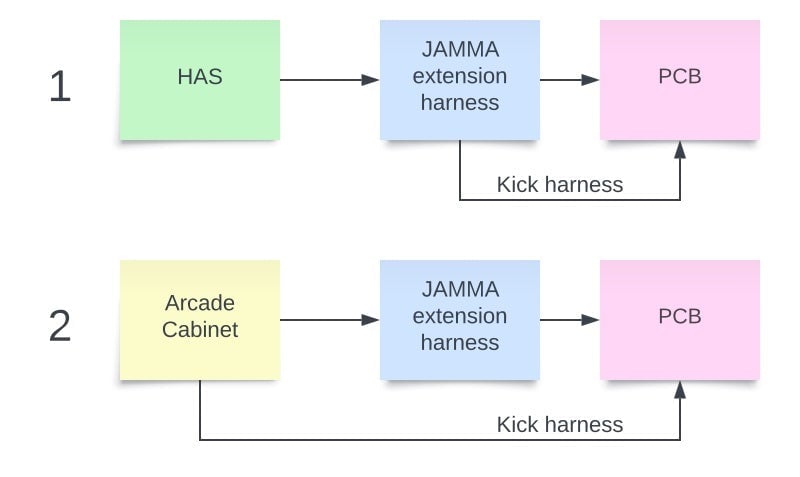

Compatible with the HAS dedicated kick harnesses if used with the HAS or devices capable of outputting 6 buttons through the JAMMA connector
HAS dedicated, but can work with other devices

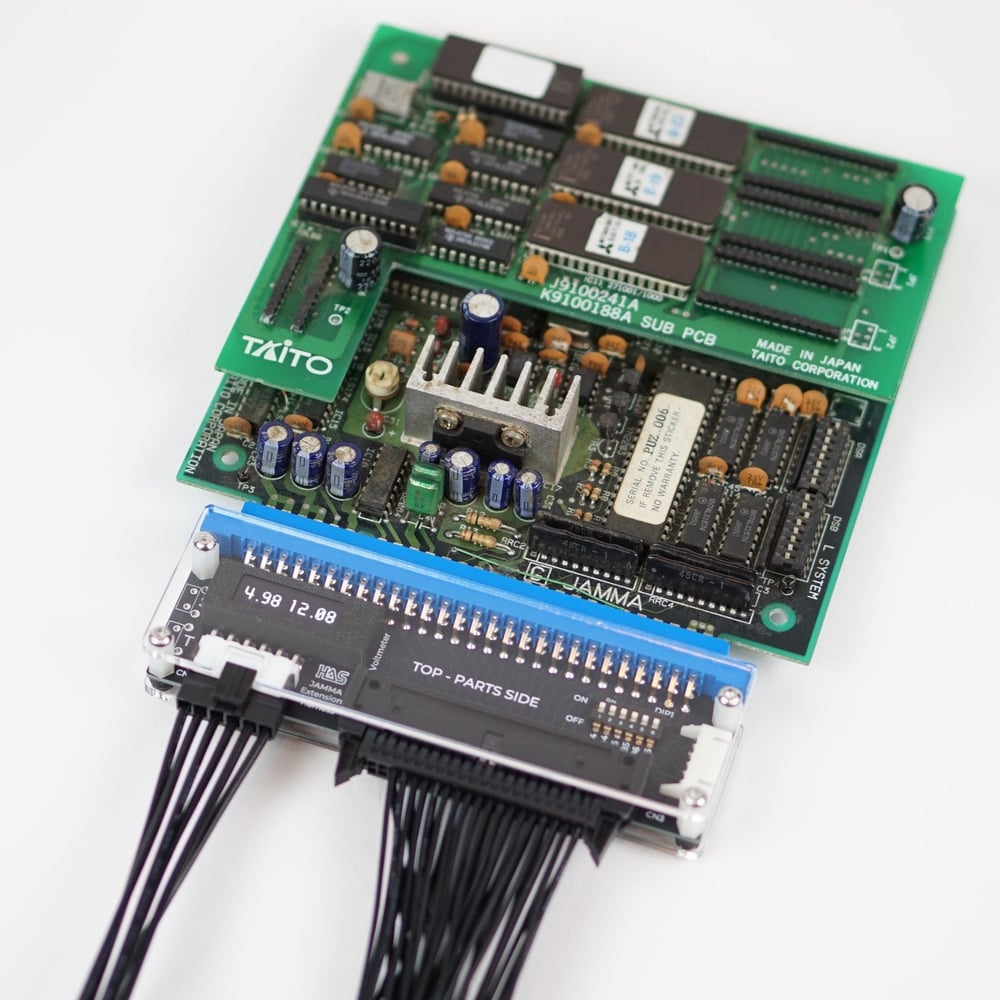

NOTE: The PCB game visible in the photo present a setup example and are not included and shown for illustrative purposes only.
