HD15 to BNC Cable

Coming soon AUD39.00
Image of HD15 to BNC Cable
Image of HD15 to BNC Cable

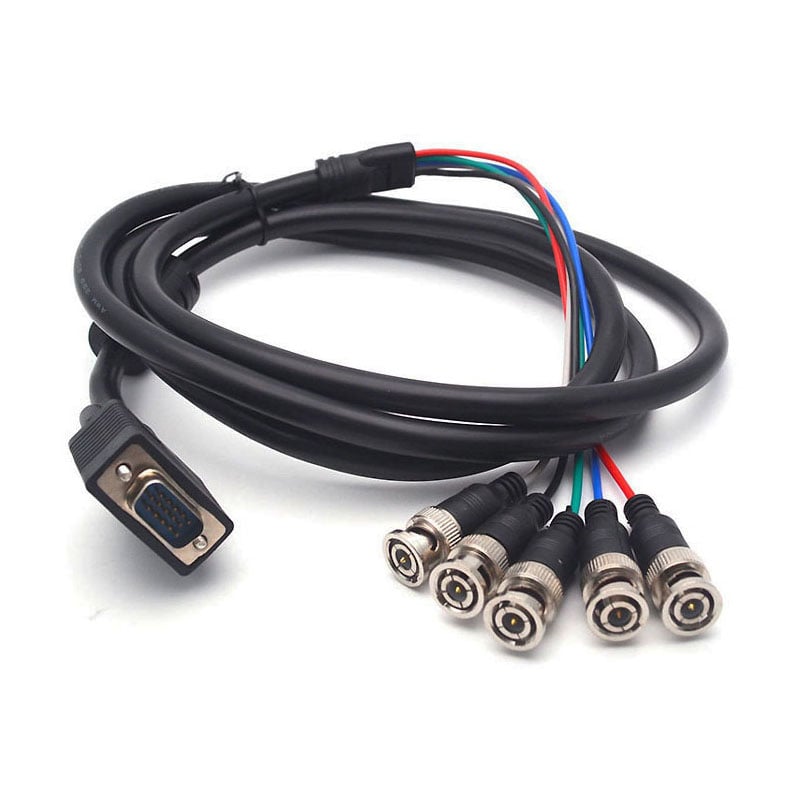

HD-15 (D-Sub VGA) to BNC breakout cable compatible with the HAS v5.1 Supergun for connection to Sony PVM / BVM monitors, etc.

Composite Sync is passed through the HSYNC BNC connector.

Cable is also compatible with MiSTeR FPGA, Analogue DAC, Extron Units, etc.

Specifications:
  • Length - 2M
  • Input Connector - Male HD15 D-Sub (VGA)

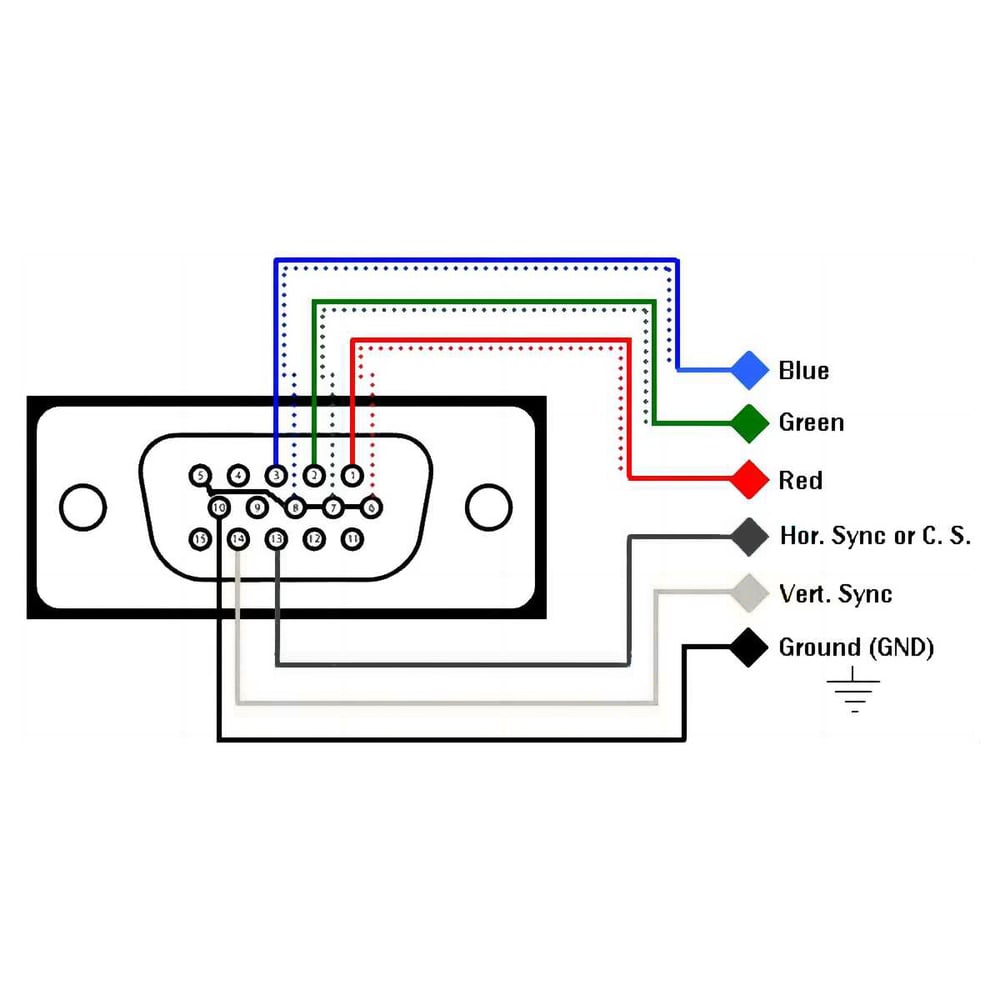

  • Output Connectors - 5x colour coded BNC: Red, Green, Blue, Black (HSYNC/CSYNC) & Grey (VSYNC)
  • Passive/pass-through cable
  • 75 ohm quintuple coax cable for standard high definition
  • Integrated ferrite on HD15 cable end for enhanced system electromagnetic compatibility
  • Double shielded to provide maximum immunity to environmental EMI and RFI and cable crosstalk
