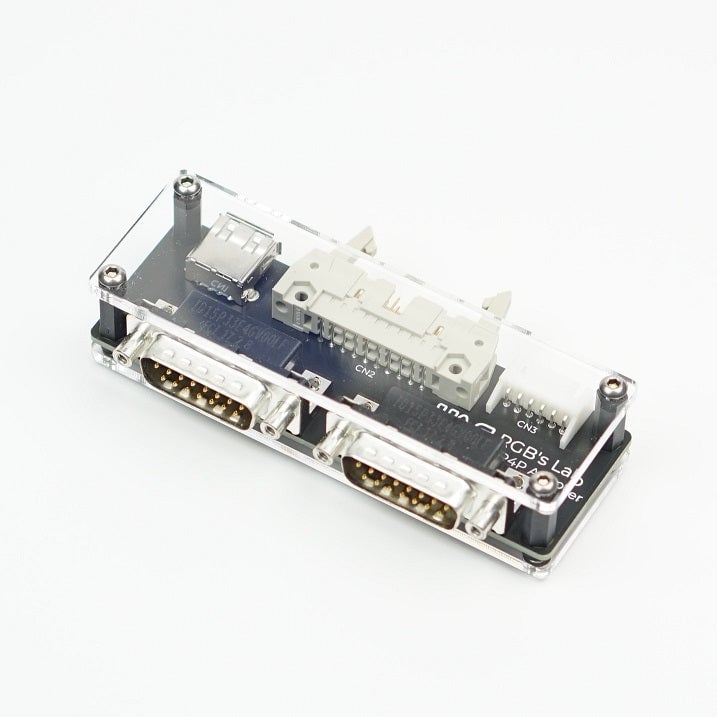

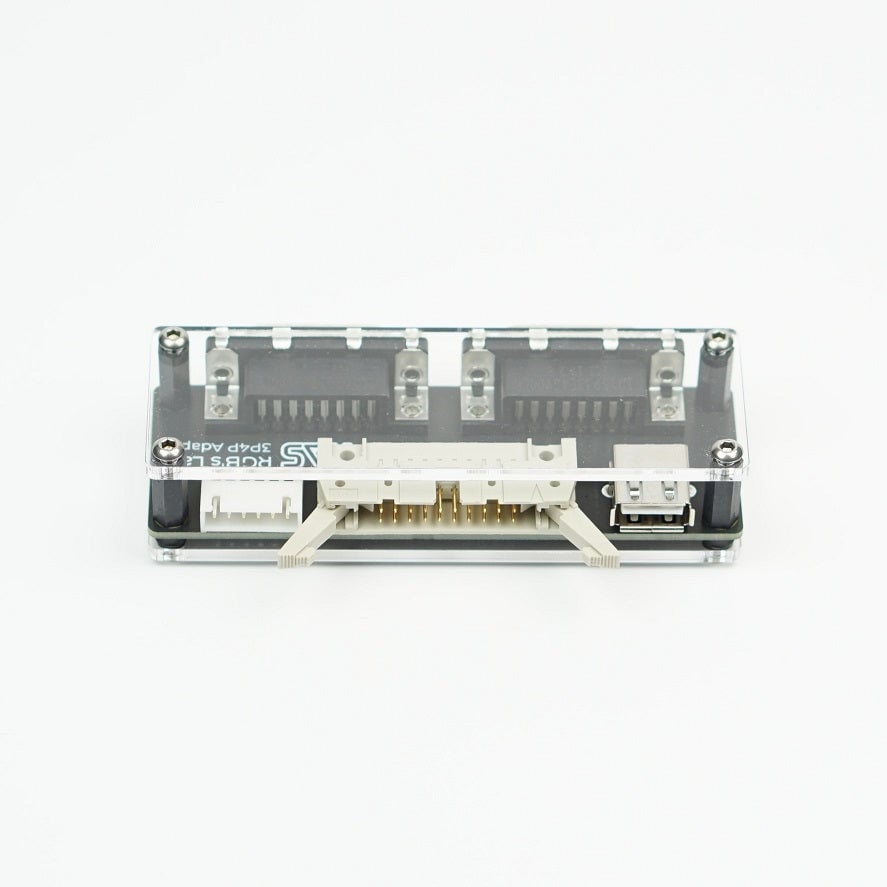

HAS 3P4P Adapter

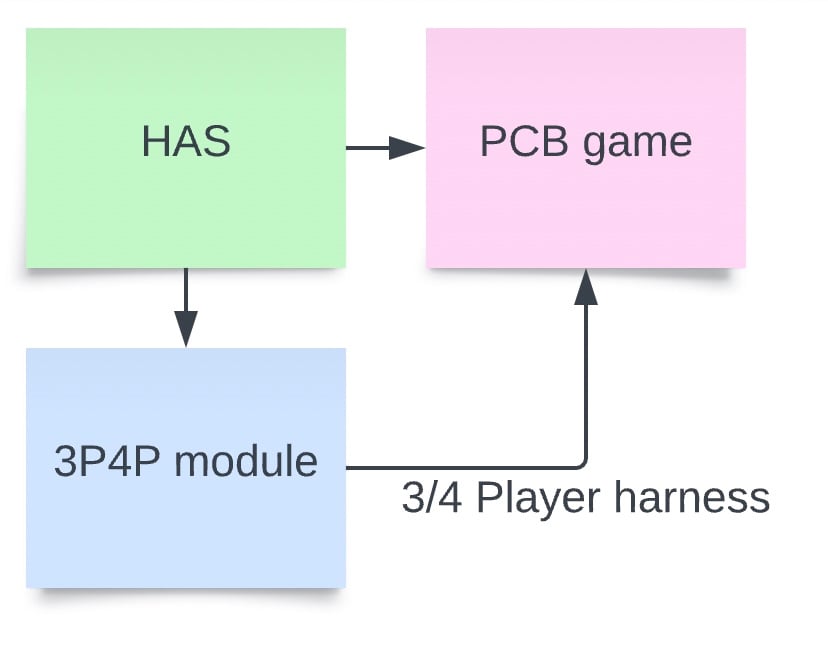

The 3P4P adapter lets you connect Player 3 and Player 4 via DB15 ports. It requires a USB type A to USB-C cable between the HAS V5.0 / V5.1 and the adapter.

Disclaimer: The module requires a dedicated harness for each PCB game. For example, to connect players 3 and 4 to the CPS-2, you need a CPS-2 Player 3 and Player 4 harness. This product does not include any harnesses or USB cables, these must be purchased separately.

If you want to use the adapter separately from the HAS, you must connect GND from your PCB game to the adapter via the CN3 connector to get the ground reference and power the adapter using the USB type A cable.

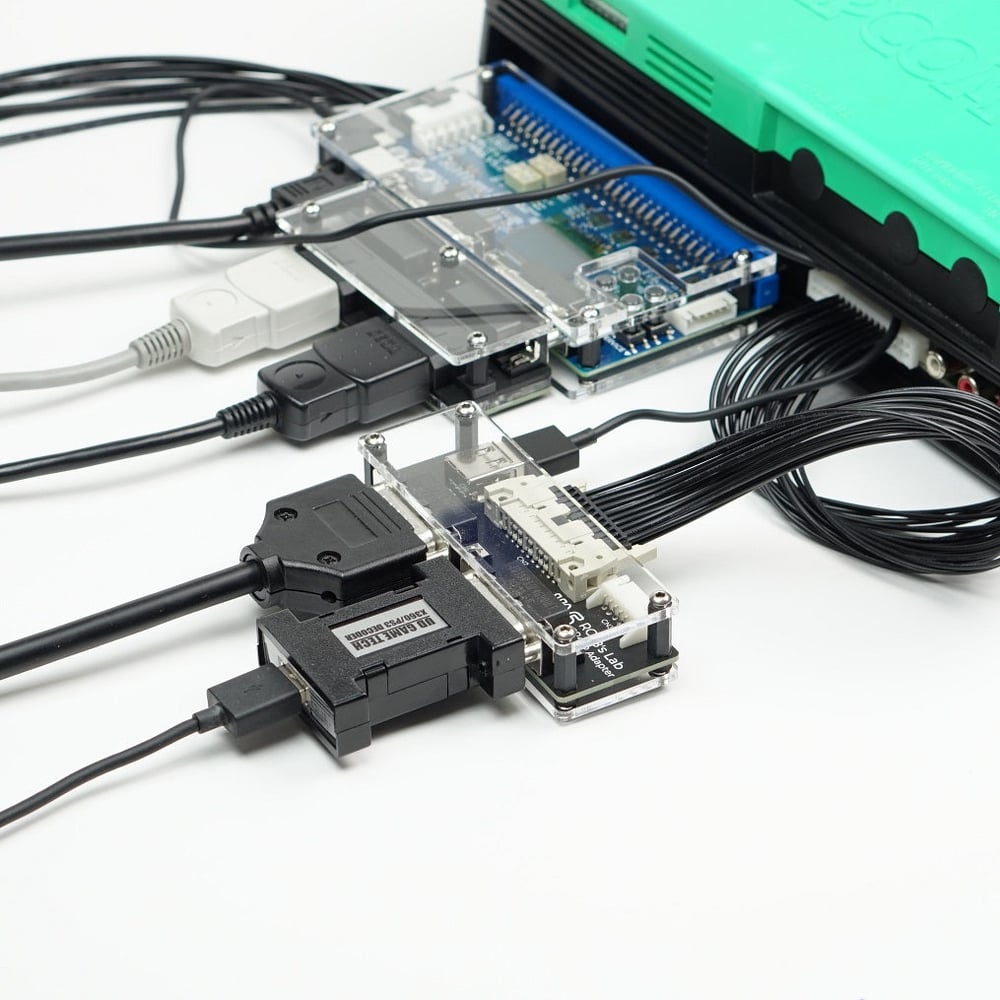

NOTE: The PCB game, cables, and accessories visible in the photo present a setup example and are not included and shown for illustrative purposes only.
