HAS 3P4P Adapter & Cables Combo

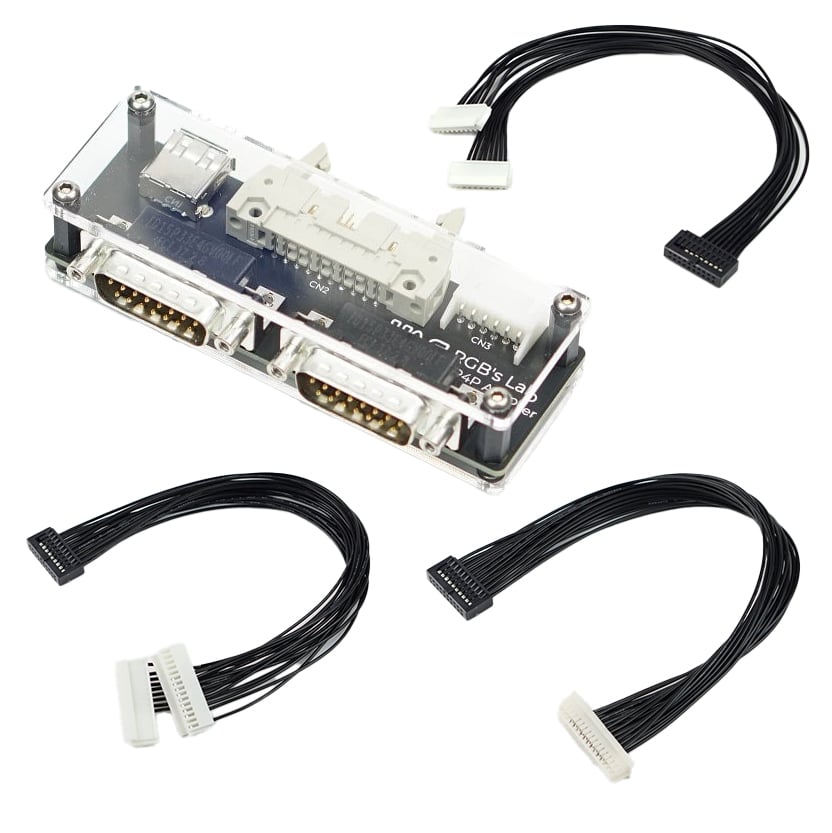

HAS 3P4P Combo package includes the following items:

3P4P Adapter
CPS-1 Player 3 and Player 4 Harness
CPS-2 Player 3 and Player 4 Harness
Konami Player 3 and Player 4 Harness

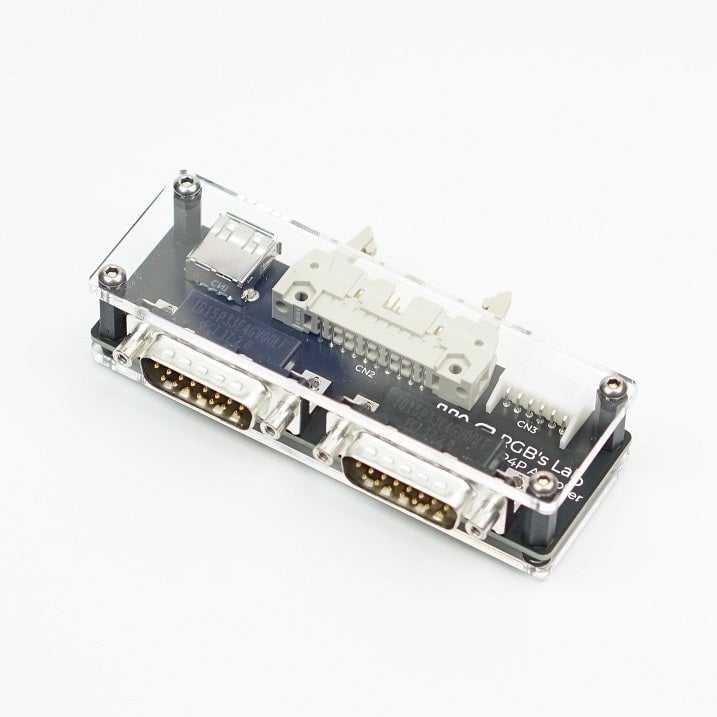

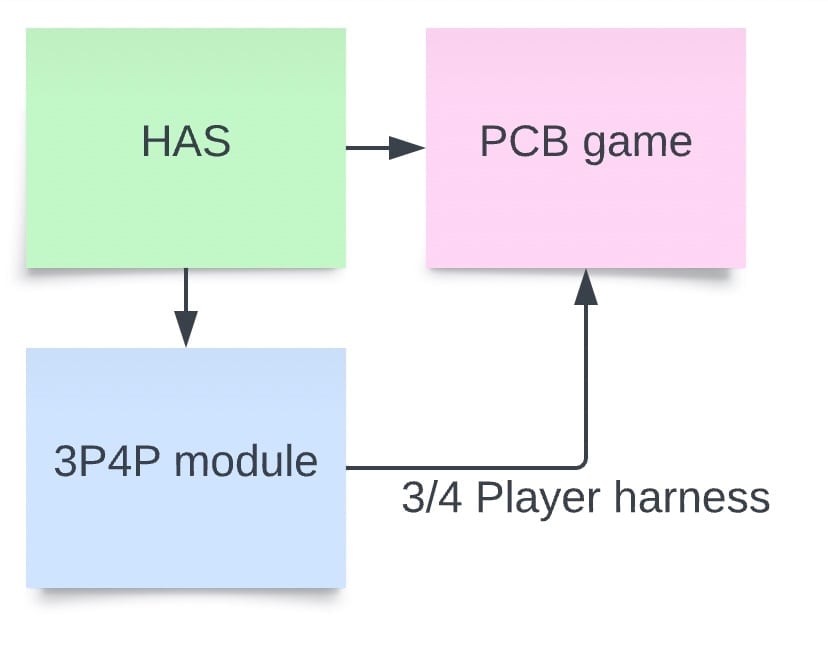

The 3P4P adapter lets you connect Player 3 and Player 4 via DB15 ports. It requires a USB type A to USB-C cable between the HAS V5.0 / V5.1 and the adapter.

If you want to use the adapter separately from the HAS, you must connect GND from your PCB game to the adapter via the CN3 connector to get the ground reference and power the adapter using the USB type A cable.

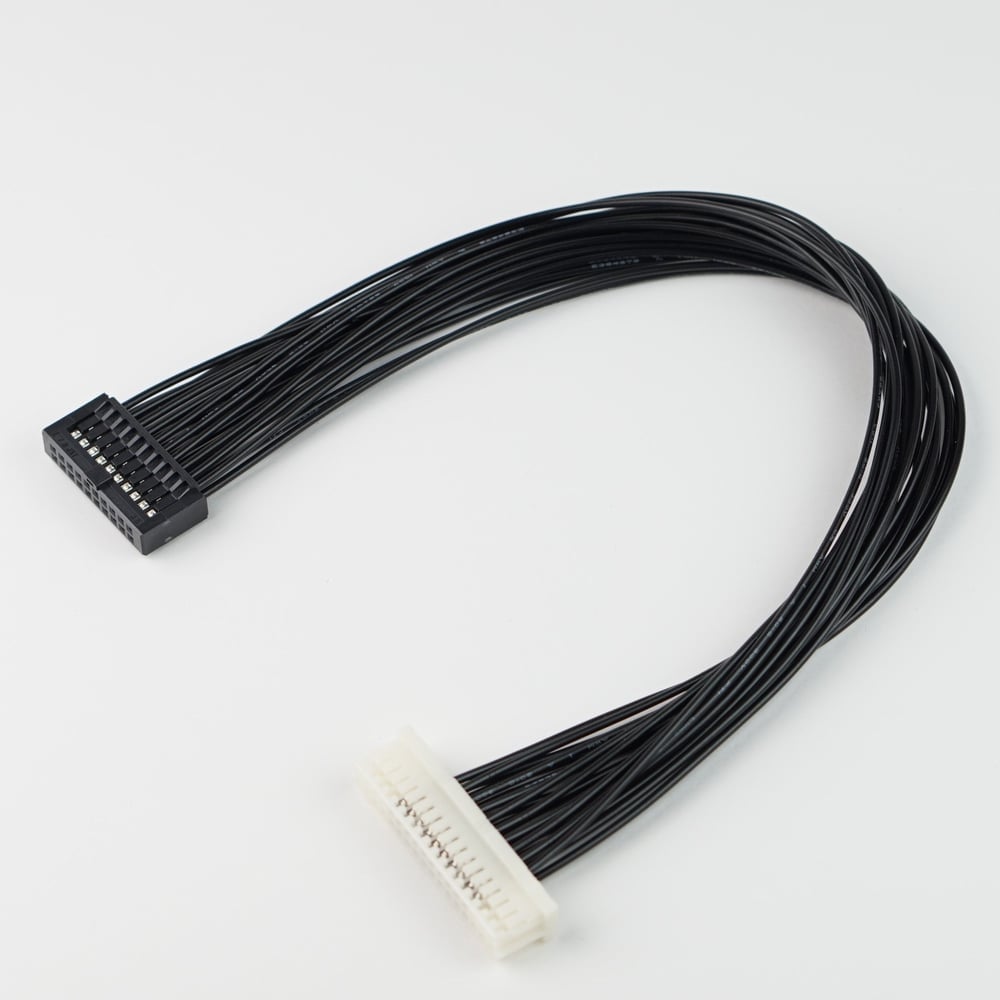

CPS-2 Cable is compatible with all 3P4P titles on the sytem.

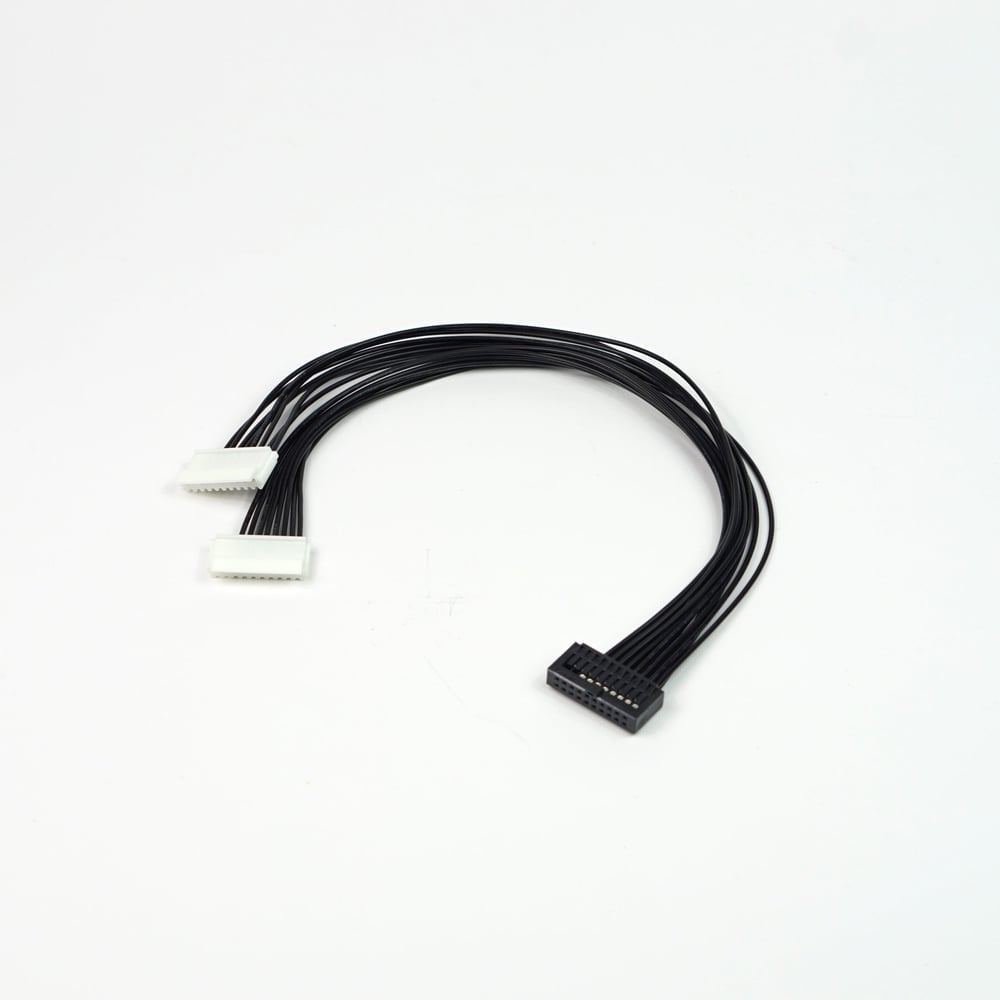

CPS-1 Cable is compatible with all CPS-1/CPS-1.5 titles except for Saturday Night Slam Masters/Muscle Bomber - it works partially, because this game uses the JAMMA edge to interface Player 3/4 button 3.

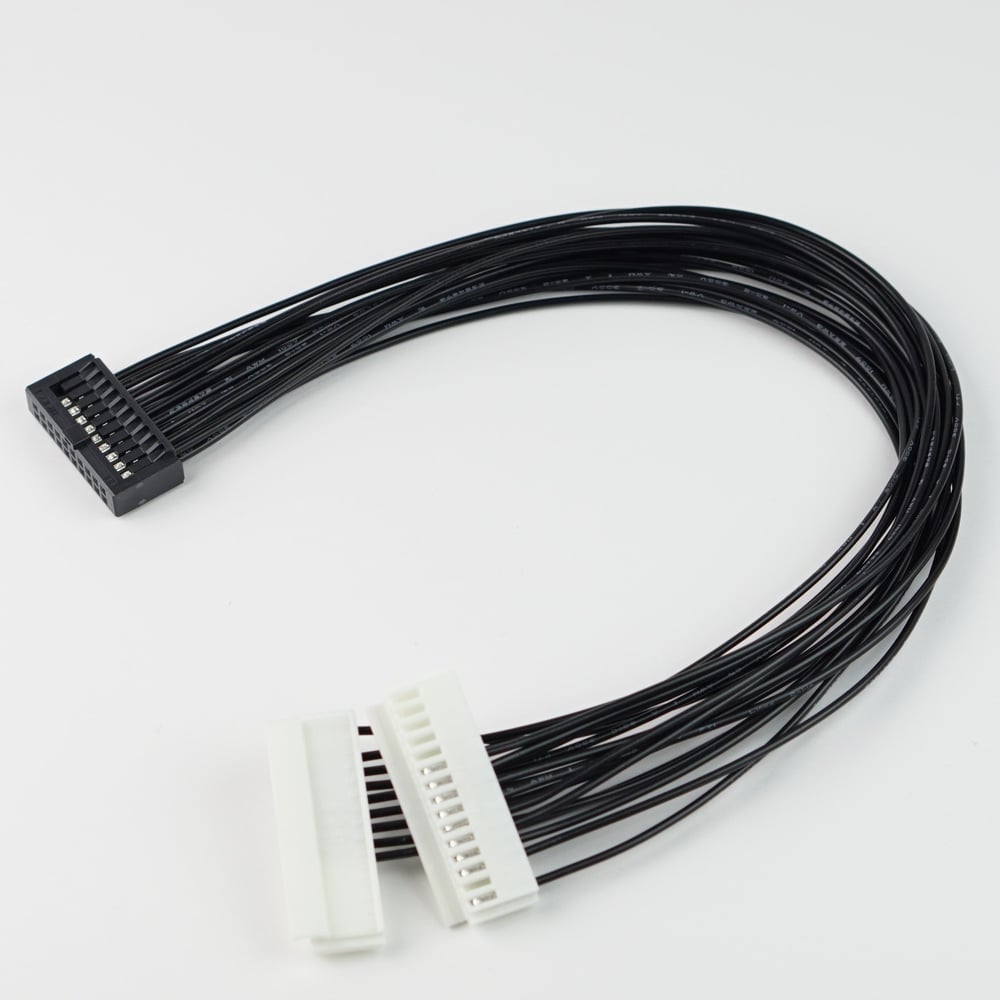

Konami Cable is compatible with the following titles:
Bucky O'Hare
Dark Adventure
G.I. Joe
Metamorphic Force
Simpsons
Sunset Riders
Teenage Mutant Ninja Turtles
Teenage Mutant Ninja Turtles II
X-Men

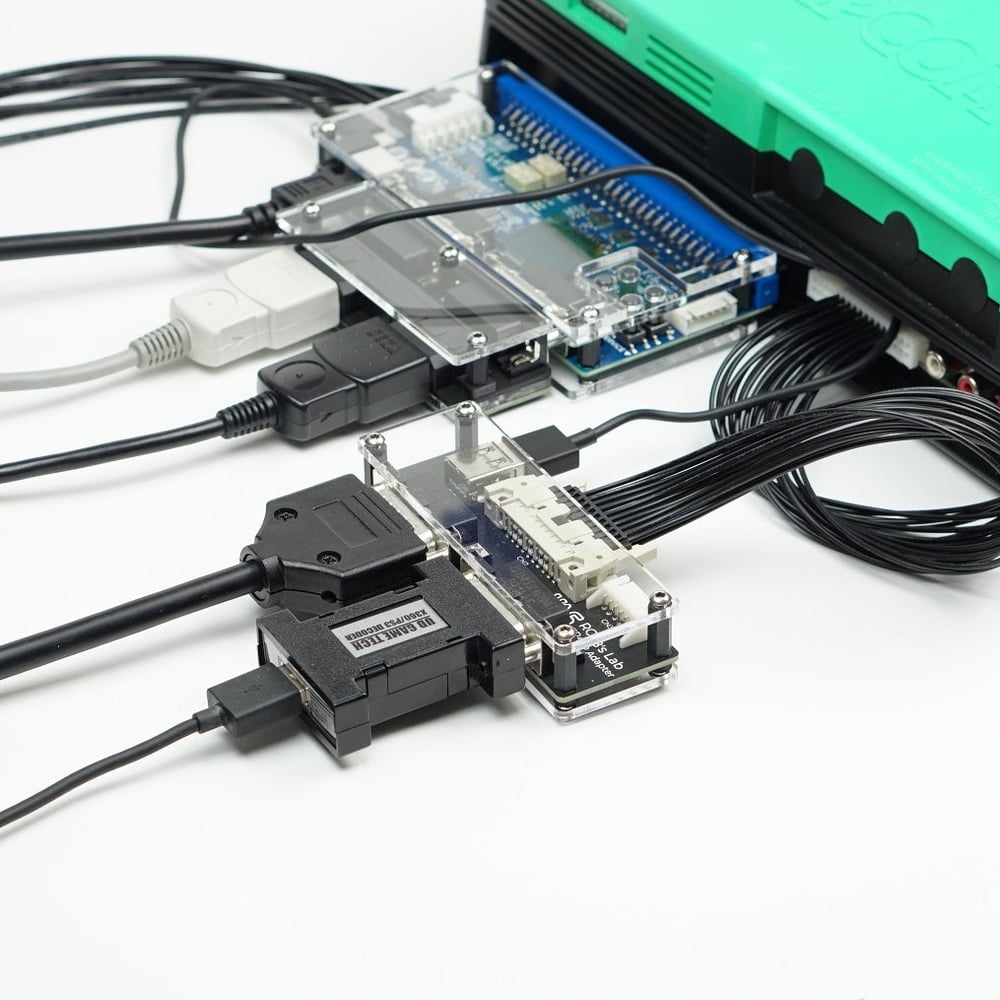

NOTE: The PCB game, cables, and accessories visible in the photo present a setup example and are not included and shown for illustrative purposes only.
