Neo Geo Marquee Driver

Name: Neo Geo Marquee Driver
Brand: candycabclub
SKU: 119285367
Price: 99.0 AUD
Availability: InStock

Coming soon AUD99.00 - AUD119.00

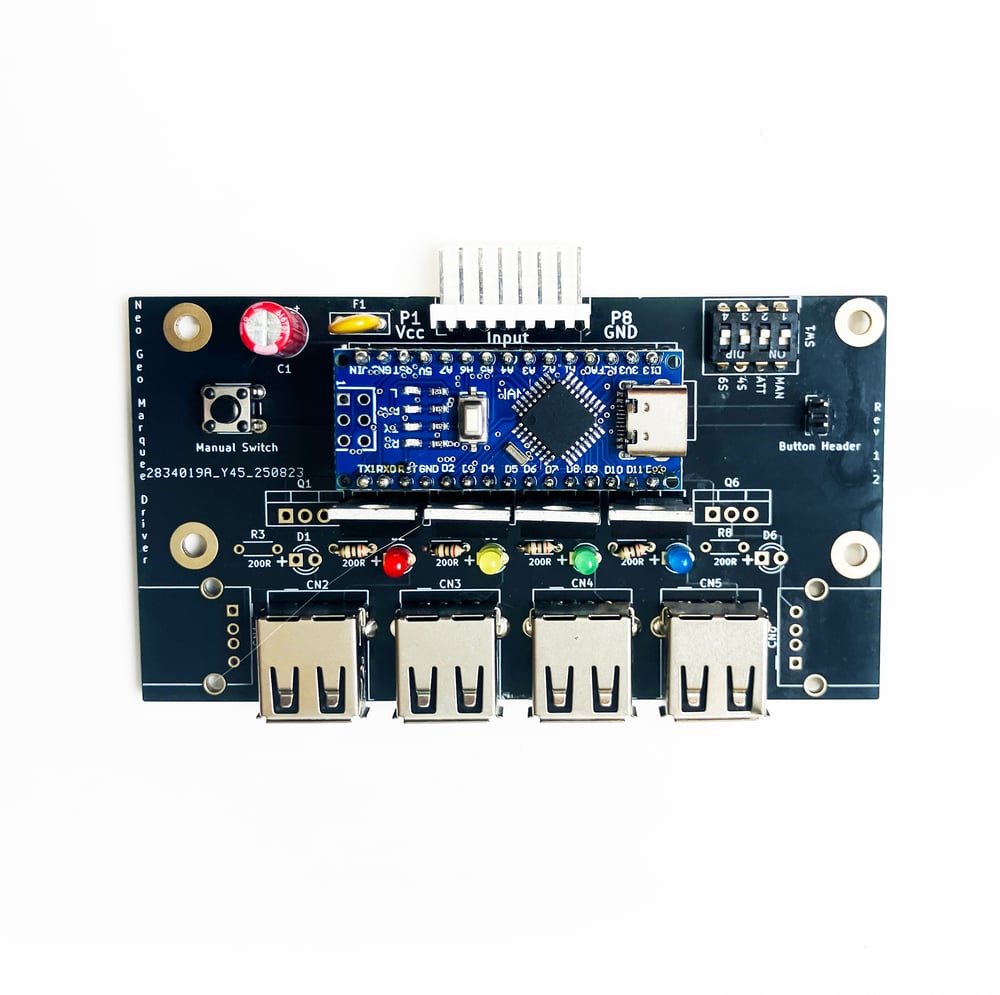

This PCB is designed to drive LED or EL panels to replace those in a Neo Geo multi-slot cabinet marquee. Many of these have failed and the EL panels are difficult to source in a form that will work with the original MV-ELA driver board.

This new solution allows you to connect modern, readily available EL or LED panels with a USB based 5v inverter.

You will need to supply your own EL or LED panels with 5v USB connection to the ports on the PCB.

FEATURES

8 pin JST/Molex style connector matching the MVS board header for easy connection (cable not included)

USB connectors for EL panel connection

LED indicators for active panel (for testing/diagnosis of non working panels)

Self test mode at power on to identify any issues

Attract mode with adjustable delay (cycles through marquees if you wanted to have a panel but do not have a multi-slot board)

Manual mode with button and button header to manually cycle through marquees (similar to attract mode but with manual change)

DIP switch to set modes

This is an open source product. Repository and more information available HERE.

Designed and constructed in Australia.
