Sanwa JAMMA Arcade Cabinet Versus Link Kit

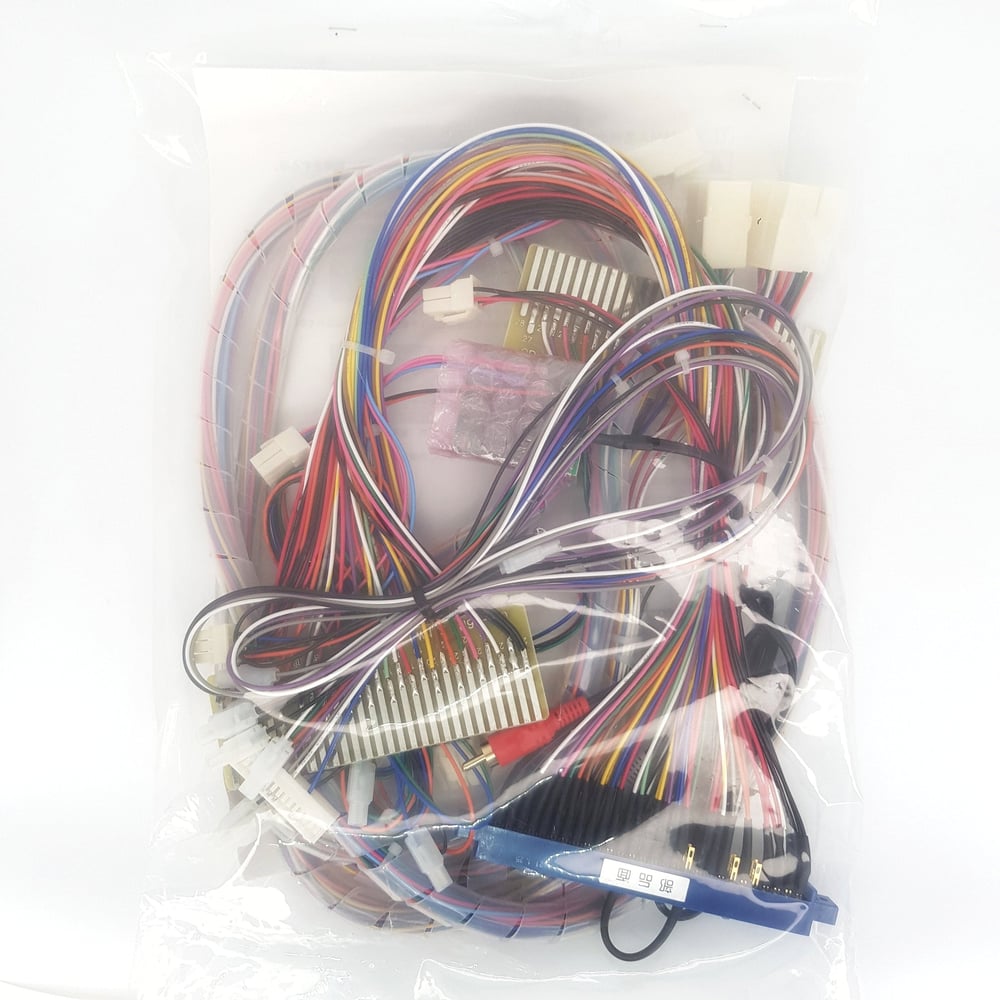

The CHS-TS2 kit is a high quality "Communication Harness" made by Sanwa Denshi, the legendary stick and button manufacturer from Japan.

This kit facilitates the linkage of two cabinets cleanly and features breakouts between connections to allow for easy routing via holes commonly found in the back of some candy cabinets. It is approximately 2.5 meters in length and weighs in at 1kg!

By connecting one arcade PCB, it passes video, sound and controls to two individual cabs. The kit also features a small sound board circuit to allow for easy volume adjustment and CPS-2 kick harness between both connections to allow for a full 6 buttons for each player.

It is compatible with JVS when using the SEGA I/O Board, as well as stereo sound.

Made with authentic Japanese JST, Sanwa and Hirose parts complete with a CR7E-56DA-3.96E JAMMA connector with G-Pin pre-installed.

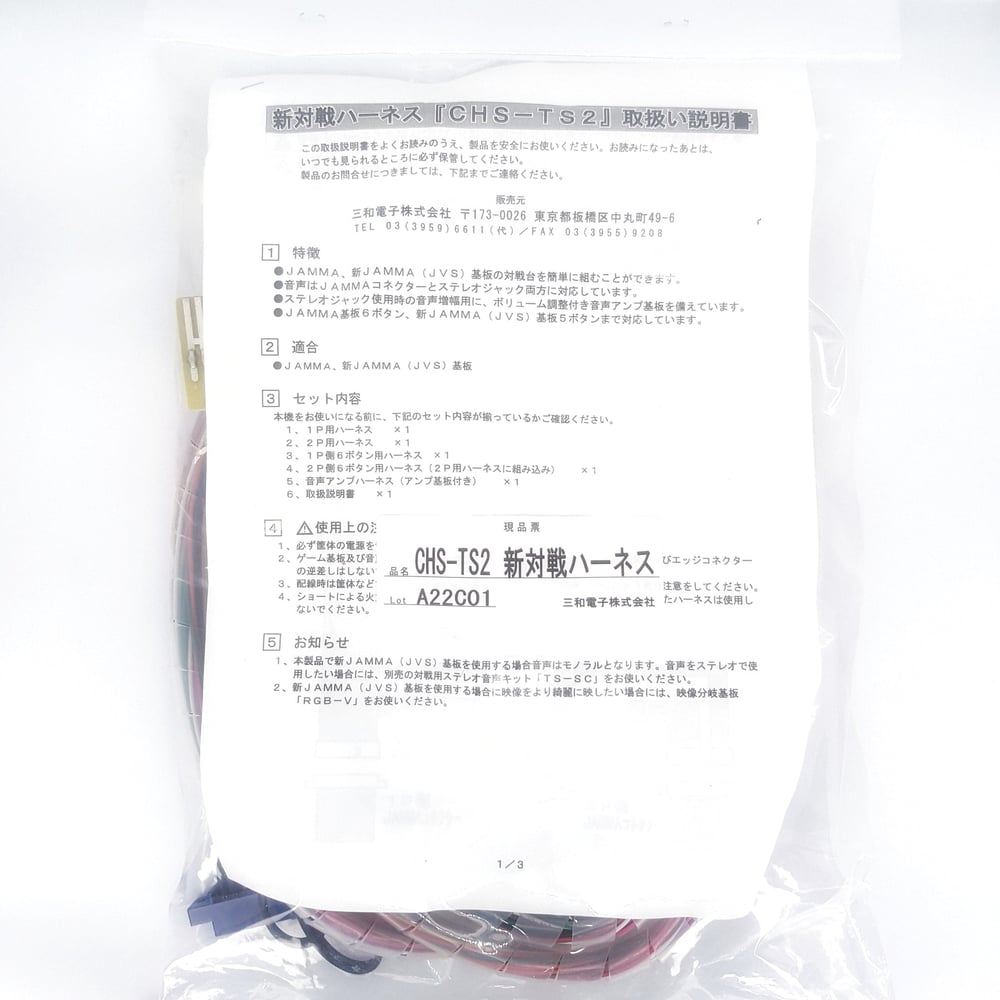

Basic manual (in Japanese Language) is included.
